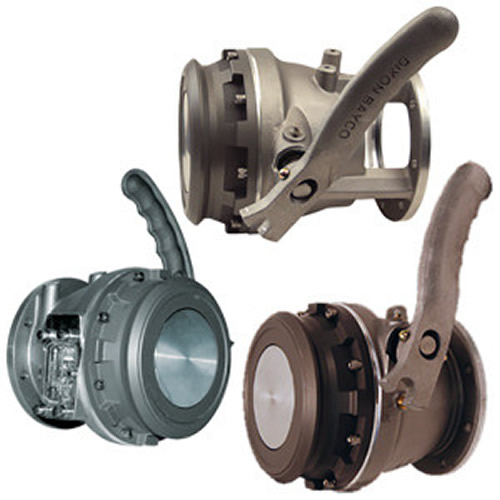

API罐車接頭 API Tank Truck Adaptor - 891 Series
兩片式鋁質可旋轉表面硬化接頭采用計算機輔助設計，以確�？煽康氖褂煤透L(zhǎng)的壽命.
Civacon891系列API底部灌裝接頭經精確設計和制造可以與任何接續裝置配合使用，物有所值，性能優良。其兩片式鋁合金結構、可旋轉的硬質附層接頭能確�？煽康氖褂煤洼^長的壽命，一體化的提升閥及醛縮樹脂軸承能使其開閉非常平滑。891還有眾多的針對廣泛用途的可選件，可以和具體的底部灌裝需求及不同條件相匹配以提高操作性能、縮短停工時間、取得最大的效益。
特性
- 平底高流量API接頭，可以減少產品的滯留。全新人體工學設計的輕質輕質鋁合金手柄是所有CivaconAPI接頭的標配
- 高流量、低滯留的設計
- 精確制造，可實現長期可靠操作
- 采用200型聯鎖安裝
- 不需要從貯罐上拆下API接頭即可方便更換提升閥密封圈
- 輕質、高強度
- 內部采用不銹鋼以保證強度和耐用性.符合API1004和EN13083要求
- 可直接替換861和897系列的API接頭。有可開啟式和不可開啟式的型號供選擇·可用于柴油、生物柴油、汽油、乙醇和甲醇重量?jī)H為6kg
訂貨規格
帶手柄的API接頭
891A
891BA
開啟式API接頭，帶鋁質手柄，兩片式設計，接頭前端表面作硬化處理
開啟式API接頭，帶鋁質手柄和視窗，兩片式設計接頭前端表面作硬化處理
無手柄的API接頭
891N
891NB
不可開啟式API接頭，兩片式設計.接頭前端表面作硬化處理
不可開啟式API接頭，帶視窗，兩片式設計接頭前端表面作硬化處理
API Tank Truck Adaptor - 891 Series
CIVACON’s API bottom loading adaptors are precisely engineered to match standard loading couplers and increase service performance.
Features & Benefits
Designed in Accordance with API RP 1004 and EN 13083
Two Piece lightweight aluminum construction for maximum strength and weight reduction.
4 Inch TTMA mounting flange
Nominal size 4 inch or DIN 100
Rotatable hard-coated nose piece for maximum service life
Flat Bottom ensures complete drainage
Minimum number of internals to minimize pressure drop and improve flow rate
Bushed running surface for efficient operation
Stainless Steel internals for maximum service life
Viton GFLT seals
Compatible with diesel, bio diesel, gasoline, ethanol and methanol
Heavy duty poppet with an acetal resin bearing for smoother opening characteristics
Easy-grip aluminum lever
Mounting lugs for model 300/301 air interlock valve
Grease nipple on handle for easy maintenance
Model Numbers
891N - Non-Openable API Adaptor
891BA - Openable API Adaptor w/ Aluminum Handle and Sight Glass
891BA-LK - Openable API Adaptor w/ Aluminum Handle, Sight Glass & Pneumatic Lock
891A - Openable API Adaptor w/ Aluminum Handle
891NB - Non-Openable API Adaptor w/ Sight Glass
Repair Parts
Repair Parts
861HRK-ALUM - Handle Repair Kit for 861 Series API Adaptor
861ORK - O-Ring Repair Kit for 861 Series API Adaptor
891BRK - Sight Glass Repair Kit 891& 861 Series API Adaptors
891HRK - Handle Repair Kit for 891 Series API Adaptor
891ORK - O-Ring Repair Kit for 891 Series API Adaptor
891SRK - Shaft Repair Kit for 891 Series API Adaptor
11345M - Blank-Off Kit for Sight Glass
Downloads
API Tank Truck Adaptor-891 Catalog
API Bottom Loading Adaptor Brochure
API Lock Assembly Brochure
API Bottom Loading Adaptor Part Drawings
891BA Openable API Adaptor w/Aluminum Handle and Sight Glass
891A Openable API Adaptor w/Aluminum Handle
891NB Non-Openable API Adaptor w/Sight Glass
891N Non-Openable API Adaptor
891BA-LK Openable API Adaptor w/Aluminum Handle, Sight Glass & Pnuematic Lock
API Installation Maintenance Manual
891HRK-RM Handle Repair Kit Installation Maintenance Manual
|
