選擇旋轉接頭時應考慮的因素
What to Consider When Selecting Swivel Joints
從消防車到鋼廠，旋轉接頭是各種機械和應用的重要部件。這些部件提供了固定管道或軟管與旋轉機械部件之間的平滑連接。From fire trucks to steel mills, swivel joints are essential components for all kinds of of machinery and applications. The components provide the smooth connection between stationary pipes or hoses and rotating machinery parts.
設計、工廠和維護工程師在柔性管道系統、裝卸臂、軟管卷盤、污水管道和污水處理設備以及各種類型的工藝機械中使用旋轉接頭。他們還使用旋轉接頭在機床冷卻液輸送，鼓灌裝應用，以及各種工廠流體和干散貨輸送應用。Design, plant and maintenance engineers use swivel joints in flexible piping systems, loading arms, hose reels, sewer rodding and wastewater treatment equipment, and various types of process machinery. They also use swivel joints in machine tool coolant transfer, drum-filling applications, and in a variety of in-plant fluid and dry bulk transfer applications.
選擇旋轉接頭時應考慮的因素
選擇旋轉接頭Selecting a Swivel Joint
如果機器元件不能移動，- 先進的機器可能會損壞。旋轉接頭是在很大程度上獲得回報的必要投資。它們延長了機器的使用壽命，減少了維護和停機時間。The most advanced machinery can breakdown if the machine elements aren’t able to move. Swivel joints are necessary investments that pay off in a big way. They extend machinery lifetime and reduce maintenance and downtime.
選擇旋轉接頭時，必須遵守制造商的規范。如果不滿足要求，很可能會發生泄漏，機械也會失效。It’s extremely important to follow the manufacturer’s specifications when selecting swivel joints. If the requirements aren’t met, it’s likely that leakage will occur and the machinery will fail.
您還必須了解給定應用程序的設計參數。壓力、溫度和支撐重量等因素對正確選擇旋轉接頭都起著至關重要的作用。另一個必須考慮的關鍵因素是流體本身的腐蝕性。You must also understand the design parameters of a given application. Things such as pressure, temperature and supported weight all play an essential role in properly selecting a swivel. Another key factor that must be taken into consideration is the corrosiveness of the fluid itself.
應用環境對于選擇正確的旋轉接頭至關重要。通過仔細考慮流體的化學成分、溫度和外部環境，您可以縮小旋轉接頭的范圍。The application environment is critical to selecting the right swivel joint. By carefully considering the fluid’s chemical composition, its temperature and the external environment, you’ll be able to narrow in on the perfect swivel joint.
選擇是無止境的The Options are Endless
考慮到尺寸、密封件和連接件的潛在組合（更不用說金屬），旋轉接頭的寬度是無限的。這些金屬包括碳鋼、不銹鋼、黃銅、鋁、青銅和球墨鑄鐵。The breadth of swivel joints is endless when you consider the potential combinations of sizes, seals, and connections, not to mention metals. These metals include carbon steel, stainless steel, brass, aluminum, bronze and ductile iron.
多功能性是任何有效旋轉接頭的關鍵，因?yàn)橐?guī)格可能因工作和所需功能的不同而大幅變化。Versatility is the key to any effective swivel joint as specification can vary drastically depending on the job and functionality required.
旋轉接頭有一個、兩個和三個旋轉平面，幾乎可以實現無限的靈活性。金屬和密封材料的標準組合包括壓力、溫度、耐腐蝕性和承載能力，完全在大多數應用要求的范圍內。端部連接的列表也很廣泛。螺紋（NPT）、法蘭（150/300 ANSI）和對焊端是- 常見的。Swivel joints are available in one, two and three planes of rotation for virtually unlimited flexibility. Standard combinations of metals and seal materials cover pressures, temperatures, corrosion resistance and load bearing capacities, well within the limits of most application requirements. The list of end connections is also extensive. Threaded (NPT), flanged (150/300 ANSI) and butt-weld ends are some of the most common.
專用旋轉接頭Specialty Swivel Joints
可為任何可能的應用設計和制造定制旋轉接頭。工程師可以通過提供經驗豐富的咨詢服務，在正確的旋轉設計的支持下，專門為滿足您的應用需求而定制，幫助您確定適合您的特殊應用的設計。專業旋轉可提供各種材料和尺寸。Custom swivel joints can be designed and manufactured for any possible application. Engineers can help you determine the appropriate design for your special application by providing experienced consultation, backed up by the right swivel design, tailored specifically to meet your application needs. Specialty swivels are available in a wide range of materials and sizes.
選擇旋轉接頭時應考慮的因素

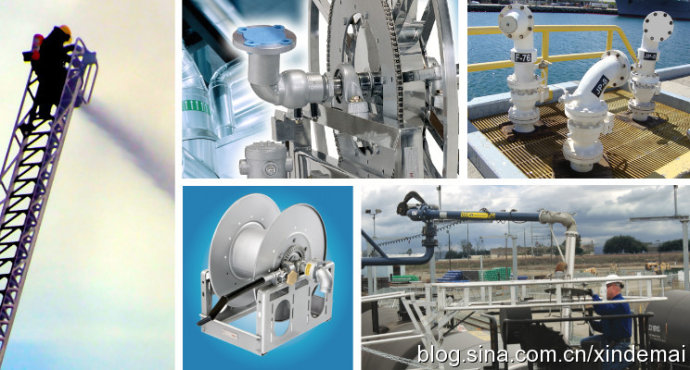

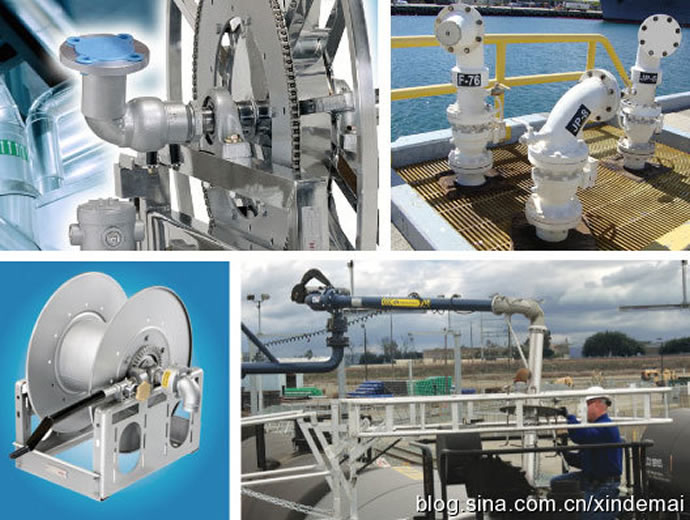

一些- 典型的應用程序包括：A few of the most typical applications include:
裝卸臂Loading arms
軟管卷盤Hose reels
選擇旋轉接頭時應考慮的因素
鋼廠Steel mills
船用/碼頭用軟管Marine/dock hoses
消防設備Fire fighting equipment
機床Machine tools
過濾設備Filtration equipment
廢水處理Waste water treatment
航空地面保障設備Aviation ground support equipment
油罐車Tank trucks
滾筒填料Drum fillers
下面簡要介紹一些- 常用的旋轉接頭，以及它們?nèi)绾斡绊憴M跨多個行業的有效流體流動。Here’s a quick look at some of the most used swivel joints and how they impact the effective flow of fluids across an array of industries.

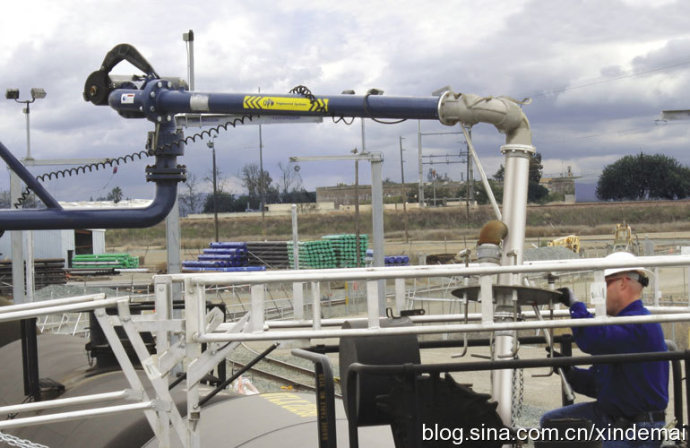

裝卸臂更換旋轉接頭Loading Arm Replacement Swivels
裝卸臂系統允許通過柔性管道系統將液體或液化氣輸送到油罐車或軌道車中。有些應用程序需要一個加載臂通過頂部連接進行加載，而其他連接點位于底部。Loading arm systems allow the transfer of fluids or liquefied gas into a tank truck or rail car through a flexible piping system. Some applications require a loading arm to load through a top connection, while other connection points are at the bottom.
多年來，裝卸臂旋轉接頭的功能不斷發展，以滿足流體處理解決方案的需求。無論應用涉及油罐車、軌道車、圓桶或手提袋，以及石油產品、液化氣、瀝青、溶劑或危險/腐蝕性化學品的移動，轉環都是這一過程中不可或缺的一部分。The functionality of loading arm swivel joints has evolved over the years to meet the demands of fluid handling solutions. Whether the application involves tank trucks, railcars, drums or totes, and the moving of petroleum products, liquefied gases, asphalt, solvents or hazardous/corrosive chemicals, swivels play an integral part in the process.

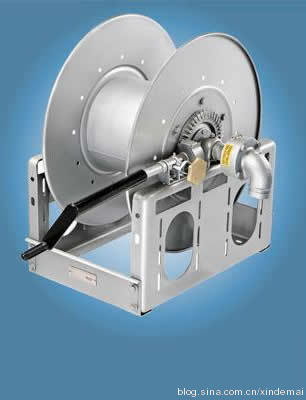

軟管卷盤用旋轉接頭Hose Reel Swivels
旋轉接頭是許多軟管卷盤應用的一個組成部分，并且有許多專門為軟管卷盤設計的部件。此外，還可以定制軟管卷盤旋轉接頭，以適合您的特定應用。Swivel joints are an integral part of many hose reel applications and there is a large variety of these parts designed specifically for hose reels. In addition, there’s the ability to customize a hose reel swivel to fit your specific application.
雙分體法蘭旋轉接頭Dual Split Flange Swivels
雙分體法蘭旋轉接頭專門設計用于輸送酸、溶劑、石化產品和其他有毒液體。這種類型的旋轉接頭具有重型結構和獨特的設計組件，有助于使其成為業內- 有效的旋轉技術。Dual Split Flange swivel joints are specifically designed to transfer acids, solvents, petrochemicals and other toxic fluids. This type of swivel joint feature heavy-duty construction and unique design components that help make it the best available swivel technology in the industry.
Swivels Are Everywhere
無論您使用的是哪種工業流體應用，旋轉閥都有助于完成工作。它們靈活、高效、經濟、耐用。有關旋轉接頭功能和定制設計功能的更多信息，請?jiān)L問www.sqsd88.cn。No matter what type of industrial fluid application you’re operating in, swivels are helping get the job done. They are flexible, efficient, cost-effective and durable. For more information on swivel joint features and custom design capabilities, please visit OPW Engineered Systems or go to
