Civacon MaxAir 氣動海底閥 MaxAir 5"x4" High Performance Crude Oil Internal Valve
Civacon's MaxAir II 5x4 Air Operated Emergency Valve

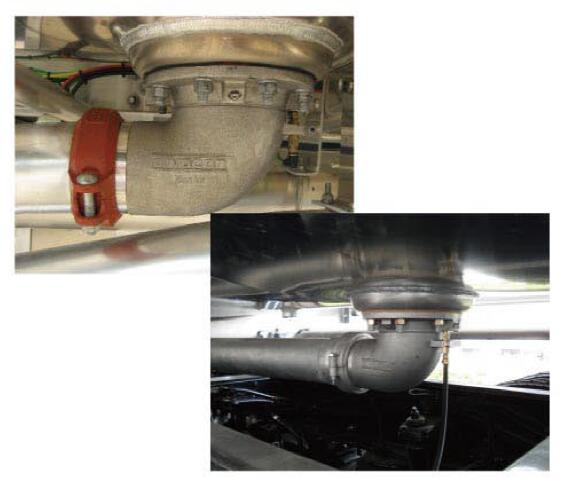

Civacon 獨特的整體設計使得安裝海底閥時活塞位于貯罐內，可實現更好的耐磨性、降低對環境的影響。
Civacon MaxAir 系列海底閥有著精良的設計，在液體流動通道中沒有活動部件，實現了高流速、高落差，保證了最大的效益�；钊系娜孛芊獯_保了最大的可靠性，而且還可以減少了維護。鑄件經過精心的設計減輕了重量、改善了流動性,并容易安裝在比較緊湊的位置。

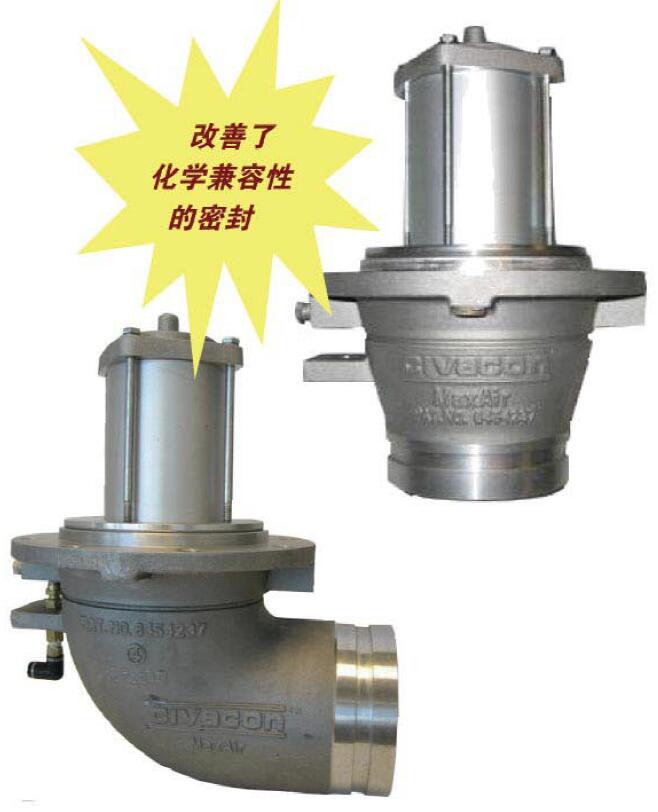

改善了化學兼容性的密封
MaxAirmm海底閥符合AP1 1004EN13083標準。他在苛刻的環境中經現場測試，可以承受-40C到66C的溫度。
所有MaxAir”海底閥都帶有一個緊急切斷槽，出廠還裝有熱(熔)安全塞，以及一個當失去氣壓時用以手動打開的插拔螺桿。這種耐用、開孔的設計縮短了裝料、卸料、維護的時間，因此，裝備了MaxAir網的罐車可以有更多的時間執行運輸。

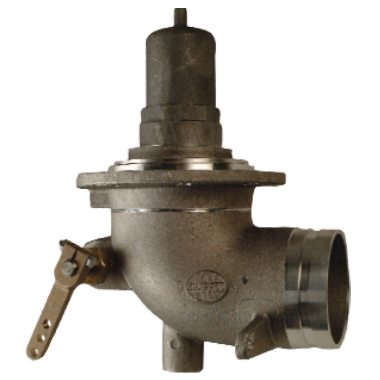

Civacon's MaxAir?II 5x4 Air Operated Emergency Valve
特性
- 液體流動通道中沒有活動部件，實現了高流量、高落差·活塞上的三重密封確保了最大的可靠性
- 當氣控失效時，可以用手動打開的插拔螺桿開口卸料.符合AP11004和EN13083標準
- 可與4英寸TTMA油罐兼容
- 閥門采用機加工，有浸潤管線能力
- 可用于柴油、生物柴油、汽油、乙醇和甲醇有多種配置，以實現標準兼容性，便于安裝(見下頁圖)
MaxAir 5"x4" High Performance Crude Oil Internal Valve

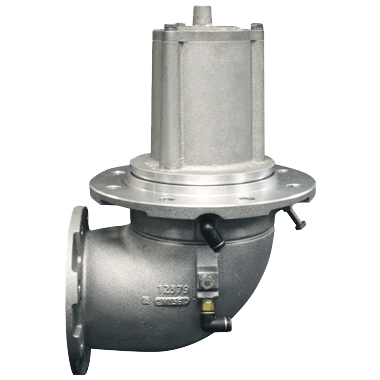

Civacon's MaxAir HP 5"x4" Air Operated Emergency Valve is suitable for both petroleum and crude applications. The MaxAir? HP Series valves are uniquely engineered with no moving parts in the flow path for a superior flow rate.
Civacon's 5x4 MaxAir HP High Performance Emergency Valve is designed with an independent external exhaust, which isolates the valve exhaust from the rest of the system. This valve is compatible with diesel, biodiesel, gasoline, ethanol and methanol. The Viton GFLT seal provides ultimate product compatibility.
This valve features an integrated air inlet that allows the unit to close if it becomes sheared in the result of an accident. It incorporates a frangible shear groove per 49CFR178.345-8 tested per TTMA RP 84. A factory installed fusible plug that will melt at a temperature of 212° F(100° C) allowing the valve to deplete air pressure. Also included is a mechanical jack screw for manual operation in the event of air pressure loss.
Operating Pressure Requirements: Minimum of 70 psi (4.83 bar) operating line pressure to open the valve against 35 psi (2.41 bar) tank pressure for crude applications. 30 psi (2.06 bar) minimum operating line pressure for petroleum applications.
The MaxAir? HP High Performance Emergency Valve conforms with API 1004 and EN 13083 standards.

Features & Benefits
Designed for crude and petroleum applications
No moving parts in flow path for superior flow rates and faster drops
Independent external exhaust
Viton GFLT Seal for superior compatibility
Mechanical jack screw allows product to be off-loaded in the event of air pressure loss
Meets API 1004 and EN 13083 standards
Compatible with 4" TTMA sumps
Compatible with diesel, biodiesel, gasoline, ethanol and methanol
Hard coat anodized aluminum and stainless steel components
Available in a variety of configurations
Operating Pressure Crude: Minimum 70 psi (4.83 bar) line pressure
Part Numbers and Drawings
VA5171 90° Elbow/Victaulic Internal Air External Exhaust Viton Gasket
VA6171 90° Elbow/Flanged Internal Air External Exhaust Viton Gasket
VA7171 90° Straight/Victaulic Internal Air External Exhaust Viton Gasket
VA8171 90° Straight/Victaulic Internal Air External Exhaust Viton Gasket
Repair Parts
12575VRK Seal Repair Kit
Downloads
MaxAir II HP Crude Oil Internal Valve Brochure
MaxAir II-Crude Oil Internal Valve Seal-Repair Kit Maintenance Manual
|
